Model |
Link-120-S30 |
Camera
|
Image Sensor |
1/2.8" Exmor CMOS, 2.13MP |
Effective Pixel |
16: 9, 2.13 megapixel |
Video Format |
1080P/30, 1080P/25, 720P/60, 720P/50, 720P/30, 720P/25 |
Optical Zoom |
30X |
Digital Zoom |
12X |
Horizontal Field of View |
63.7° ~ 2.3° |
Lens |
4.3 mm to 129.0 mm |
Digital Noise Reduction
|
1~5 Steps |
Day/Night ICR |
Auto/Manual |
WDR
|
On/Off
|
Focus |
Auto/Manual/PTZ Trigger |
Exposure |
Auto,Manual,Shutter priority,Iris priority |
Illumination Switching
|
Manual & Auto |
Image Stabilization
|
On/Off |
Lights |
Lamp Range |
60m |
Infrared Spectrum |
850nm |
Interface |
Video Output |
BNC |
Comm Interface |
RS485 |
PTZ |
Pan Range |
360°Continuous |
Pan Speed |
0.1° ~ 80°/s |
Tilt Range |
-25° ~ 90° |
Tilt Speed |
0.1° ~ 60°/s |
General |
Communications |
Pelco-D / Pelco-P Protocol |
Baud Rate |
2400/4800/9600/19200 self-Adaptive |
Address |
0-255(soft address) |
Menu Language |
English |
Environmental |
IP66 |

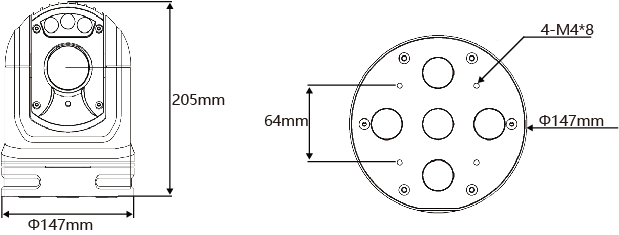

Dimensions |
Φ147mm x 205mm Height |
Power Supply |
10V-24V 30W Max(Motor Drive & Illumination On) |
Operating Temperature |
-25℃ ~ +60℃ |
