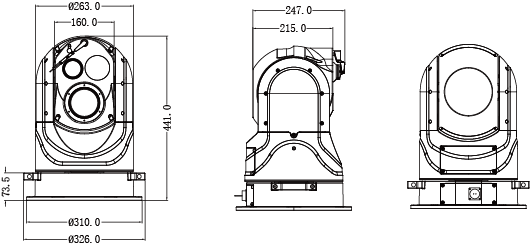

Dimensions |

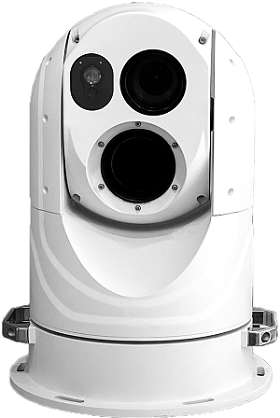

Model | Link-780-NH675S | Link-780-NH675 |
IR Camera |
||
Image Sensor | Uncooled VOx | |
WorkingBand | 8μm~14μm | |
Spectral Resolutions | 640x512 | |
Sensor Size | 12μm | |
NETD | ≤50mk@300K | |
E-Zoom | 1-8X | |
Lens | 75mm | |
FOV |
5.9° x 4.7° | |
Color Palettes | 18 | |
Detecting Range | Vehicle:14170m Man:3120m |
|
Measurement (optional) | ||
Temperature measurement | -20℃ ~ +550℃ | |
Accuracy | ± 2℃ or ± 2% of reading | |
Measurement Modes |
Global,spot, area, isotherm, line profile,alarm for temperature above or below | |
VS Camera | ||
Image Sensor | 1/1.8"Sony STARVIS CMOS Sensor, 4.17MP | |
Effective Pixel | 16: 9, 4.17 megapixel | |
Video Format(NET) | 1080P/30, 1080P/25, 720P/30, 720P/25 | |
Video Format(SD) | PAL/NTSC | |
Optical Zoom | 30XEnhanced Optical Zoom 36X StableZoom * 2 |
52X |
Digital Zoom | 12X | |
Horizontal Field of View | 58.1° ~ 2.3° | 61.8° ~ 1.6° |
Lens | 6.5 mm to 162.5 mm | 6.1 mm to 317.0 mm |
Digital Noise Reduction | 1~5 Steps | |
Day/Night ICR | Auto/Manual | |
WDR |
On/Off |
|
Focus | Auto | |
Exposure | Auto | |
Image Stabilization |
On/Off | |
Network | ||
Image Resolution | Max:1920*1080@30fps | |
Image Compression | H.264, H.265 | |
Image Code Stream | Dual streams output | |
Protocols | HTTP, RTSP, TCP, UDP, ONVIF | |
Ethernet Interface | 10 / 100M | |
Interface | ||
Video Output | 1 Channel Thermal Imaging Video or 1 Channel Visual Video; BNC | |
Comm Interface | RS485 | |
PTZ | ||
Pan Range | 360°Continuous | |
Pan Speed | 0.1° ~ 300°/s | |
Tilt Range | -90° ~ 90° | |
Tilt Speed | 0.1° ~ 200°/s | |
General | ||
Communications | Pelco-D / Pelco-P Protocol | |
Baud Rate | 2400/4800/9600/19200 self-Adaptive | |
Address | 0-255(soft address) | |
Menu Language | English | |
Environmental | IP67 | |
Dimensions | Φ263mm x 425mm Height | |
Power Supply | 24V 60W Max | |
Operating Temperature | -40℃ ~ +65℃ |
